Technical Specifications
Drive:Hand operated
Orientation:Pass left or Pass right
Materials:Casework:304 grade stainless steel or Painted Steel
Casework lid:304 grade stainless steel
Tripod hub:Aluminium alloy painted black
Tripod arms:Stainless steel tube, polished
Dia.36 mm, length 510mm
Function:Passage in both directions, electronically controllable

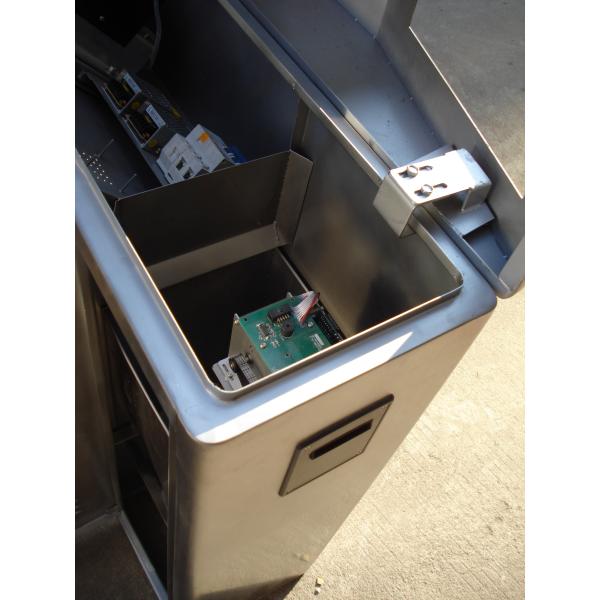

Mechanism:Control of the tripod operation is achieved by an electro-mechanical head mechanism located within the top section of the turnstile casework. It is silent in rotation and comprises the following standard features:
lA positive lock action that prevents two passage at one time
lA self centering machanism to ensure complete rotation once the mechanism to the home position
lA hydraulic damper to ensure smooth operation and longer mechanism’s life
lAnti backup device to prevent reverse rotation once the mechanism has moved to 60degree from home
Operating Modes: When go signal is given from the access control system or from a push-button, the tripod can be rotated for 120degree, allowing the passage of only one person at a time.
Power Failure:In the event of isolation of the power supply the tripod can be configured to fail-safe. i.e. rotates freely, or fail-lock. i.e. locks in the home position.
Either option is available in both or one direction.
Interface: The HE84/3 control logic has the following standard features:
lOnce input for opening/locking the mechanism in each direction(voltage free contact required)
lTwo 0V output relays including availability of use in either direction
lTwo 0V outputs to count passage in either direction
The Unit has an ajustable time out facility if required i.e. Go signal will be cancelled if passage through turnstile is not completed within pre-set time.
Power Supply: 220/110V 50/60Hz
Max Power Rating: 50VA
Logic Voltage: 24V DC
Delivery Details: delivered fully assembled and may require lifting geer for off loading, weight is approx 70 Kg.
Accessories
Cardreader Mounting
lSurface mounting only of customer supplied readers
lCardreader Pedestals
Traffic-lights
lLED traffic-lights are available to give availablity to transit in a specific direction.
Remote Control
l
